Description

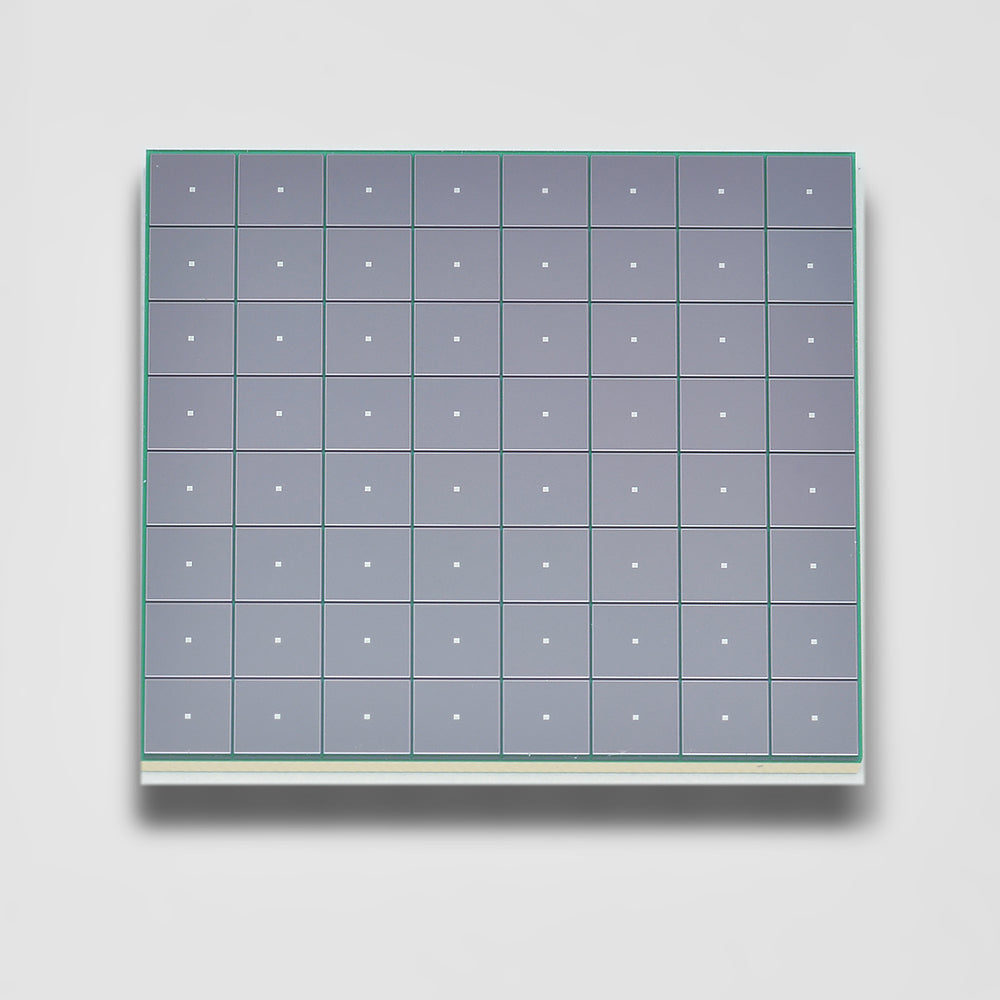

8 x 8 channel array, pixel pitch: 50 μm, with connector
The S13361 series is an MPPC (SiPM) array for precision measurement. It inherits the superb low afterpulse characteristics of its predecessor and further provides lower crosstalk and lower dark count. This MPPC array uses through-silicon via (TSV) to minimize non-sensitive portions around the photosensitive area. The 4-side buttable structure allows arraying multiple elements in two dimensions at narrow intervals.
Features
- Reduced crosstalk and dark count (compared to previous products)
- Low afterpulse
- Outstanding photon counting capability (outstanding photon detection efficiency against incident photons)
- COB (chip on board) package with minimal dead space
- Tiling forms a large sensitive area
- Excellent uniformity
- Low voltage operation
Click here to view a full product spec sheet PDF.
| Product Specifications |
| Detector Series |
UV-blue (high precision) MPPC |
| Spectral response range |
320 to 900 nm |
| Peak wavelength (typ.) |
450 nm |
| Effective photosensitive area |
3 x 3 mm / ch |
| Pixel pitch |
50 μm |
| Number of pixels |
3584 / ch |
| Package |
Surface Mount with connector |
| Cooling |
Non-Cooled |
| Output Type |
Current Output |
| Dark signal (typ.) |
500 kcps / ch |
| Terminal capacitance (typ.) |
320 pF / ch |
| Gain (typ.) |
1.7 x 10^6 |
| Recommended voltage (typ.) |
56 V |
| Measurement condition |
Ta=25 ℃ |
