Description
Counting unit

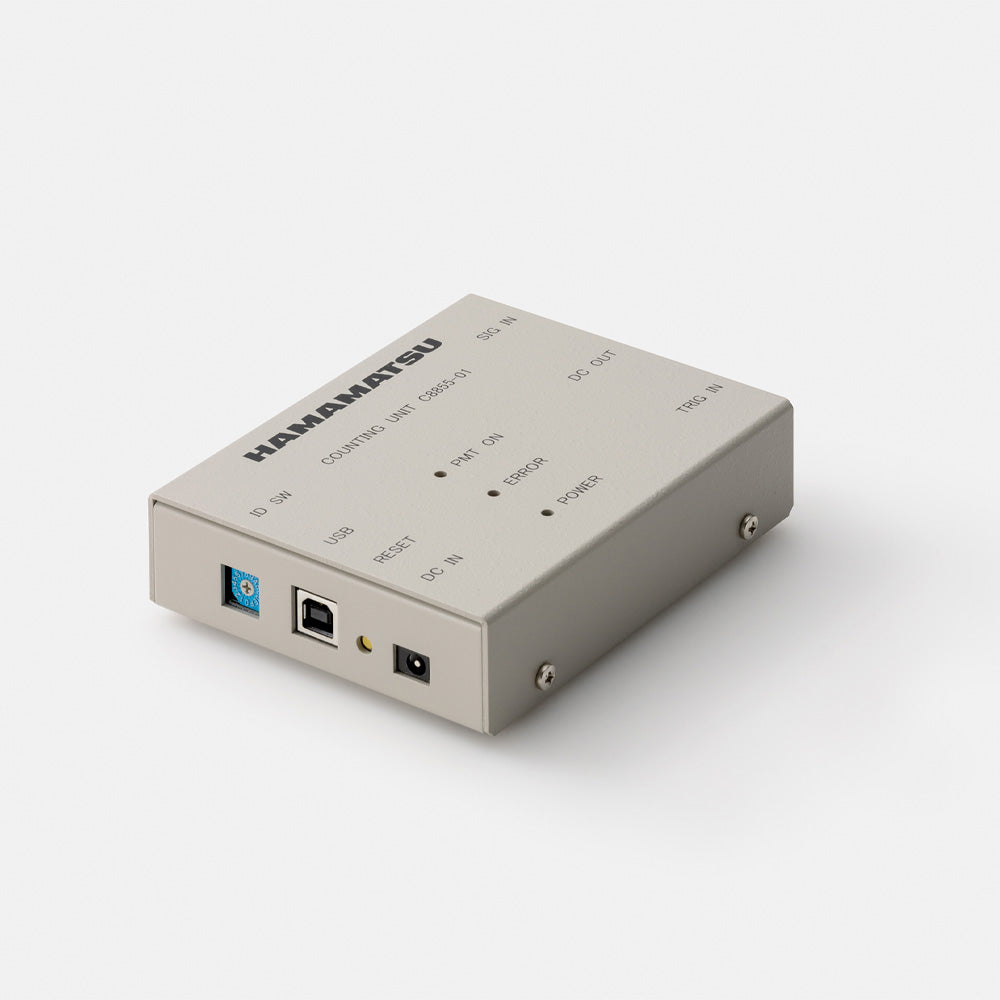

The C8855-01 is a counting unit with a USB interface and can be used as a photon counter when combined with a photon counting head, etc. The counter of the C8855-01 has two counter circuits (double counter method) capable of counting input signals with no dead time. Since the C8855-01 is hot-swap compatible (plug and play compatible), it helps you set up measurement environment quickly. You can start measurement on the day the C8855-01 is delivered by the sample software.
Click here to view a full product spec sheet PDF.
| Product Specifications |
| Device types |
Photon counting unit
|
Input impedance
|
50 Ω
|
Number of input signals
|
1 |
Signal input level
|
CMOS positive logic (high level: 2V min) |
Signal pulse width
|
8 ns or longer |
| Max count rate |
50 MHz |
| Max counter capacity |
2^32 counts/counter gate
|
Counter gate mode
|
Internal counter gate only
|
| Internal counter gate time |
50 us to 10 s (1,2, 5 step) |
| Trigger method |
Software/External trigger |
| Eternal trigger signal |
TTL negative logic
|
| OS |
Windows 10 Pro/11 Pro |
| Interface |
USD
|
| Supply voltage |
Supplied by USB bus power +7V/400 mA Max. (supplied from AC adapter)
|
This product will ship 4 days after email order confirmation is sent.
